Let Operator Take over Chatbot Conversation

BotStar can help you automate responses to your customers as defined by your scripts but it can’t handle the exceptional cases that are out of scope. That’s why we came up with the human takeover feature so it can be switched to an operator to continue the conversation.

Human Takeover feature allows BotStar to pass the control of conversations to operators in order to manage the conversation between your bot and your customers. Please keep in mind that once the Human Takeover block is reached, the customer will wait for an interaction from the operator. The flow will stop and wait for the operator to take over the conversation personally.

There are two ways to enable Human Takeover:

Alternatively, you can also enable Human Takeover in Inbox of Facebook page

Add Human Takeover action in Flow

You can allow customers to request to chat with human operator using Human Takeover action, by following these steps:

  1. Drag and drop Let Human Takeover action from the Library panel into the Flow Editor to create an action. Meanwhile, create a connector from another block to action Let Human Takeover

2. Configure Properties of the action

  • Auto return to Bot after idling for: Define the amount of time that bot will take back the control of conversation after the customer requests Human takeover action. After that time, if customers continue to chat, chatbot will be the one who respond. Please go to Session Expiry to understand how it works.
  • Notify admin: Operator will receive notification via emails when customers go through the Human Takeover block. Please remember to choose the "Yes" box to enable receiving notification.
  • Emails: list of email addresses of the operators.
  • Goodbye Message: The last message that bot will send to the customer before handing over the conversation to the operator.
  • Back to Bot Quick Response Button: A quick reply button to let bot come back the conversation
  • Back to Bot Message: The message that bot will greet the customer once the human operator hands over the conversation back to the bot when customer clicks the Bot Quick Response Button

Note: Please check our Mini-course lesson 5 for example

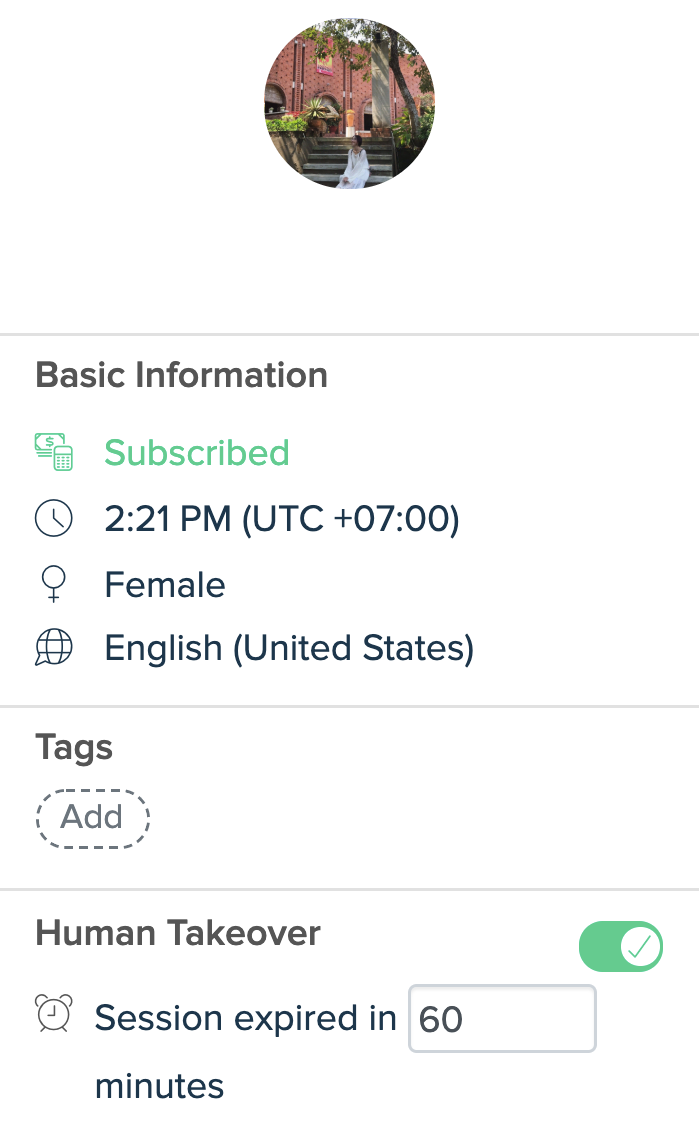

Enable Human Takeover from Inbox

You can also enable Human Takeover in Inbox feature. Inbox is the feature to manage all of the conversations between the bot and the customers in Messenger and Website. Moreover, you can identify and control Session Expiry for each customer’s conversation.

Please follow the instructions below to switch Human Takeover manually:

1. Go to Messages > Inbox > Select a conversation from the list

2. Enable Human Takeover on the right-hand column to take over the conversation from bot. Add the timing of Session expired by inputting the time as desired.

3. Continue the conversation with the customer.

Human Takeover timeout

In Human Takeover feature, we provide you the timeout for Human Takeover which called Session Expiry. Therefore, when the time in session which you have set up is expired, and the customer continues to chat, bot will respond to the customer, not the operator. There are two kinds of Session Expiry in our system:

Set up Human Takeover action

Session expiry for each Human Takeover action is the amount of time counted after the customer requests Human Takeover action until the operator starts to respond to the customer. If this session is expired and the operator has not responded to the customer yet, bot will take back the control.

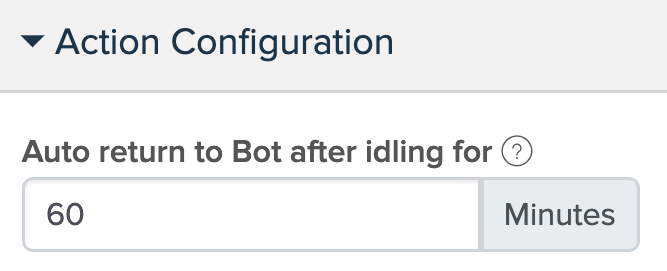

You can set up Session Expiry for each Human Takeover by clicking to a Let Human Takeover action in the Flow, then adjust the timing in Auto return to Bot after idling.

If you choose not to setup the time for this session expiry, bot can only take back the control of the conversation when the operator manually disable human action in BotStar Inbox.

Set up Default Session Expiry

Default Session Expiry is the amount of time counted when the operator starts to respond to the customer until it is expired as configured.

You can set the default session expiry in the Settings > Behaviors > Human Takeover.

If you do not edit the time of this default session expiry, it will be set as default as 60 minutes

Human Takeover in Facebook page's Inbox

If you choose to manage conversations on Facebook page, here is what you can do.

From Facebook page’s Inbox, there are 2 sections for Human Takeover action:

  • Main: Show conversations that are under control by the operator.
  • Done: Display conversations which are managed by the bot. Whenever customers request Human Takeover, the conversation will automatically move to the Main section and bot will be paused.

After you have set up Human Takeover in Facebook Inbox, When customers chat with bot, all the conversations will be stored in the Done section. When customer goes through Human Takeover action in bot flow, Human Takeover action will automatically move the conversations from Done section to Main section. Operator will receive a notification in Facebook notification.

Set up Human Takeover in Facebook page’s Inbox

To use Facebook page’s Inbox, please follow these steps:

1. From Botstar’s application, go to Bot Builder > Publishing Configuration > Messenger > Notifications > Enable Human Takeover Notification via Messenger Inbox

This step is required to move the conversations from Done section to Main section on Inbox of Facebook page. This is not to receive the notification through inbox from BotStar system. If you don't enable Human Takeover Notification via Messenger Inbox, all the messages will only appear in Main section.

2. From your Facebook page, Go to Settings

3. Select Advanced Messaging on the left sidebar > General Settings > App Settings > Click Configure button

4. Assign Primary Receiver and Secondary Receiver as below:

  • Primary Receiver: Select BotStar (It's required for this feature to work). BotStar or in other words your bot will chat with users.
  • Secondary Receiver: Select Page Inbox. Page Inbox is Inbox in your Facebook Page Management which will be able to get control from your chatbot.

We recommend setting BotStar App as the Primary Receiver. Typically, the Primary Receiver would be a bot that will automatically respond to all messages automatically, and the Secondary Receiver would route to chat with operator or be a specialized app for handling certain request types.

After completing setting up, Operator will receive notifications in the Facebook Notifications on the right corner (the Bell icon) whenever customers type any responses after they have requested Human Takeover.

Note:

  • After setting up your bot with Facebook Page Inbox, you can use it in combination with BotStar Inbox. BotStar Inbox will automatically work with Facebook Inbox after completing the above settings.
  • If the time of Session expired in BotStar inbox is running out, you can go to Facebook inbox to continue handling conversations.

Takeover the conversation from bot on Facebook inbox

When the operator actively want to takeover the conversation with a customer from the bot, please follow these steps:

1. Click the drop-down menu that says Done.

2. Select the conversation.

3. Click on the Move to Main button (or Move to Inbox in other interfaces) located near the top right corner. Bot will receive the signal and stop chatting with the user, as well as start counting Session Expiry.

4. Continue the conversation with the user in folder Main.

Takeover the conversation from bot on Facebook inbox

Handover the conversation to bot on Facebook inbox

When the operator want to hand over the conversation of a customer back to the bot, please setup as following:

1. Click the drop-down menu that says Main

2. Select the conversation that needs to be intervened.

3. Click Move to done button on the top right corner. Bot will receive the request and continue the conversation from the human operator.

Handover the conversation to bot on Facebook inbox

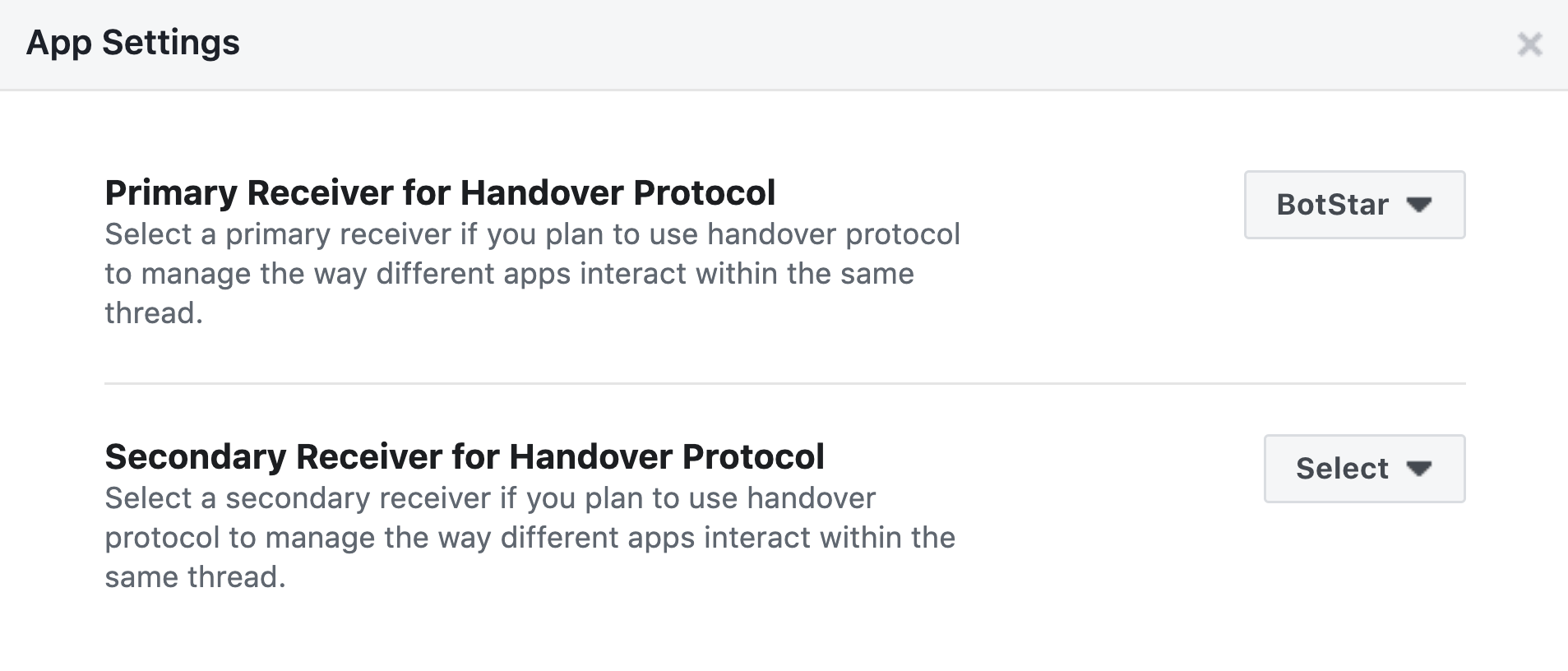

Set up all the conversations in the Main section only

In case the operator wants all the conversations to be gathered in only one place, specifically, the Main section, please follow these steps:

1. Go to Settings of your Facebook page

2. Select Advanced Messaging on the left sidebar > General Settings > App Settings > Click Configure button

3. Assign Primary Receiver and Secondary Receiver as below:

  • Primary Receiver: You can choose to keep BotStar in Primary Receiver.
  • Secondary Receiver: Please make sure to Unselect Page Inbox or another app in the secondary receiver.

If you have any concerns, please feel free to leave a comment below or contact us through support@botstar.com. For more details on how we have helped our customers grow their business, you can view our use cases, blogs or join our BotStar community to learn and share new things 😊
